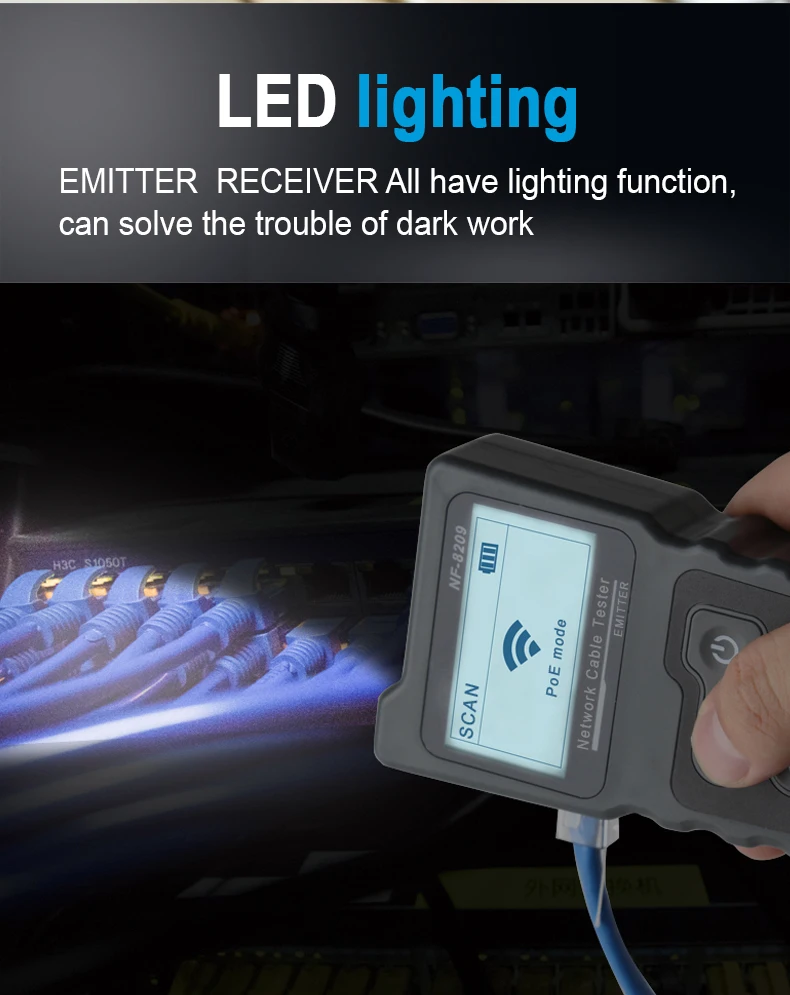

NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Cat5 Cat6 Lan Test Network Tool Scan Line Wiremap Tester

98% of buyers enjoyed this product! 517 orders
1340
Ships From:
China Russian Federation Spain
Color:
View cart→

product description:

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

NF-8209 Product Operation1. CONT— Test open, short, cross,ect for STP, UTP cable.
2. Length–measure length of lan cable, range is 2.5m~200m.
3. Scan–Analog/Digital/ PoE mode to locate lan cables.
4. PoE— available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
5. Flash–locate network port by the flashing port light on switch/ router.

NF-8209 Package Include:

Transmitter 1pc ( battery is not include )
Receiver 1pc
Remote 1pc
Earphone 1pc
Cable adaptors 1 set
Carry bag 1pc
User manual 1pc
Quality certificate 1pc
NF-488 Features:
Test the information of the standard/non-standard PoE device, such as voltage, polarity, midspan or endspan.
Identify the type of PSE, it is af or at standard.
Test of real-time power consumed by PD devices in PoE power supply systems.
Test the open, short, cross status in the network cable.
Test the power consumed by DC appliances.
The loop test function of the switch.
Specifications:
Material: ABS

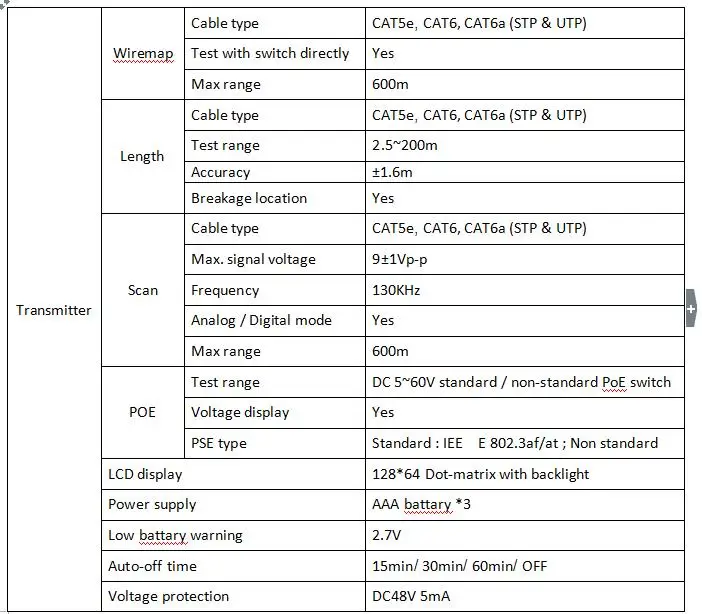

Transmitter Specification:
CONTINUITY FUNCTION:
Cable Types: STP/UTP
Max Testing Range: 600m
Wire Mapping: Emitter + remote, emitter + switch/routor
POE FUNCTION:
Test Range: DC5-60V PoE switch
Standard Identify: 802.3af/at(standard/non-standard)
Test Range Power: 0-18W
POWER FUNCTION:
Voltage Test Range: DC0-60V
Current Test Range: 0-3A
Power Test Range: 0-180W
Display: LCD 128*64mm, with back light
Input Voltage Protection: DC48V, 5mA
Max Working Current: ≤80mA
Loopback: Compatible with 10M, 100M,1000M switch
Power Supply: 3 * 1.5V AAA battery (Not included)
Remote Specification:
Ports: RJ45
Function: Wire mapping for network cable
Input Voltage Protection: DC48V, 5mA
NF-488 Package List:
1 * Emitter
1 * Remote
1 * Crocodile Clip Test Line
2 * Cable Lead
1 * Carry Bag
1 * User Manual
